Pedrazzoli circular saws


Pedrazzoli Super Brown circular sawsPedrazzoli circular saws are recognised world leaders in the manufacture of cut off saws, bandsaws, automatic cut off saws, circular saws for metal cutting, tube bending and end forming equipment.

Pedrazzoli have been supplying saws throughout the UK for over 40 years, with combined sales of over 40,000 machines. Now part of the Tauring Group, Pedrazzoli has expanded it’s range with new models.

Manual

Pedrazzoli circular saws are built for extreme sturdiness and long work-life; their structure is entirely made of cast iron with high precision machining. Cutting heads are perfectly balanced to give a pleasant and effortless cutting action. They are supplied in one-speed, two-speed or with variable speed drive unit. The rotating cutting table (mitre versions only) provides excellent support for material even the case of very short lengths while reducer’s screw has a double support on ball bearings and an elastic joint which ensure a perfect vibration-free cut and consequent long blade life.

Semi-automatic

Pedrazzoli’s semi-automatic cutting machines are very fast and noiseless thanks to particular constructive design of the screw-ring transmission, the double screw support on bearings and the original design of clutch unit. The infinitely variable speed drive unit gives excellent results in varied work conditions even when the blade’s diameters is quite small. Head tilts on adjustable self-lubricating bushings, anti-burr vice is reversible and can be connected both on left-hand and right-hand side. The pneumatic head movement unit is complete with hydraulic brake . This enables operator to adjust blade descent speed according to type of material and type of cutting blade used. Also these models can be fitted with blade cleaning devices, inversion of blade rotation direction unit, pedestals and loading-unloading tracking.

With feeder

These extremely versatile metal cutting machines are supplied with feeders which allow to keep cutting pieces until bar finishes. 45° cuts both left and right can be carried out in semi-automatic mode , while the version for aluminium cutting can also perform mitre cuts off the vertical up to 45°. Rotation of graduated disc is upon tempered balls with automatic stops in 90° and ± 45° positions and manual stops in intermediate positions. The vices move freely in horizontal direction and head tilting upon adjustable self-lubricating bushings makes machines reliable even on large cutting capacity with ø 350 mm blades. The feeder carriage is complete with clamping cylinder with adjustable closing pressure which allows to securely grip piece with no deformation; the 600 mm stroke can be selected as single or multiple step and adjustable speed. Machines with feeder can also be used in semi-automatic cycle, with single step feeling or in totally automatic cycle.

    BROWN 300 mitre manual circular saw

    Pedrazzoli Brown 300 circular saw

    VERSATILE SAW FOR BARS AND SECTIONS The Brown 300 manual mitre circular saw is a versatile saw for the small workshop with a need for mitre cutting capability in small batches. MACHINE COMPLETE WITH: Rotation of the head block for angled cuts up to 45° left and right with locking lever. Manual vice with rapid […]

    BROWN 300 SA semi-automatic circular saw – Pedrazzoli

    Pedrazzoli BROWN 300 SA circular saw

    The Pedrazzoli BROWN 300 SA offers great versatility for bars and sections and can cut straight or angles using a head rotation mechanism for angled cuts up to 45° left and right with locking lever.

    Pedrazzoli MCL120 automatic circular sawing line

    Pedrazzoli MCL120 automatic sawing system
    MODEL: MCL120 Pedrazzoli fully automatic circular saw system for high speed production cutting of tubes, for use with a 350mm diameter HSS saw blade for ferrous and non-ferrous cutting. 7 controlable axes for full automation Fully automatic changeover under program control Up to 3 different cutting lengths per program MACHINE DESCRIPTION 7 controlled axes: constant [...]

    PERRIS 350 AP compound mitre automatic circular saw

    Pedrazzoli PERRIS 350 AP circular saw

    HIGH SPEED CUTTING OFF MACHINE FOR ALUMINIUM AND LIGHT ALLOYS The Perris compound mitre saw is a rapid cut off machine for aluminium and light alloys. Flexibility of operation and high cutting accuracy make this machine the most reliable solution when cutting non-ferrous sections. ALWAYS THE CORRECT CUTTING ANGLE The graduated turntable rotates on hardened […]

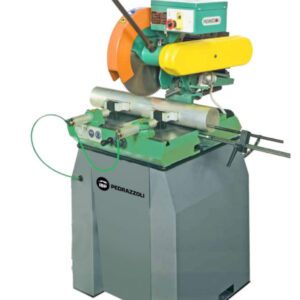

    PERRIS 350 pull down compound mitre circular saw

    Pedrazzoli PERRIS 350 circular saw

    The Pedrazzoli PERRIS 350 is designed for cut off of aluminium and light alloy sections. Angles up to 60° left, 45° right and 45° off the vertical can be made whilst the job is clamped in two manual vices adjustable both lengthwise and laterally (MRM version), or two pneumatic vices adjustable both lengthwise and laterally (MRP version). The machine is fitted with a two speed pulley arangement where speeds are changed by swapping the pulleys round, and a metric length stop positionable on both sides of machine.

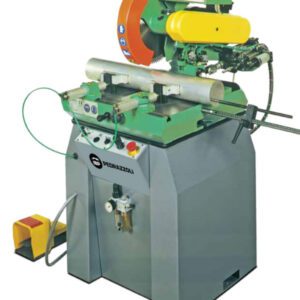

    PERRIS 350 SA-PN high speed circular cut off saw

    Pedrazzoli Perris 350SA-PN mitre circular saw

    HIGH SPEED CUTTING-OFF MACHINE FOR ALUMINIUM AND LIGHT ALLOYS The Pedrazzoli high speed circular cut off saw for light alloys offers a unique sawing solution for angled cuts with the ability to be set for both left and right rotation, and head tilt up to 45° from the vertical to provide complex compound cuts FEATURES […]

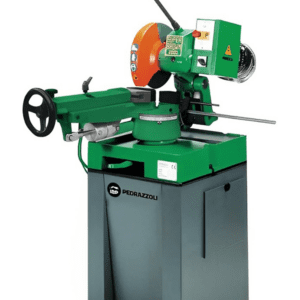

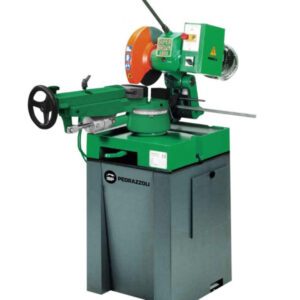

    SUPER BROWN 2000 pull down mitre circular saw

    Pedrazzoli SUPER BROWN 2000 circular saw

    SUPER BROWN 2000 circular saw. A high performance manual two speed circular saw with compound mitre cutting which can cut angles from up to 60° left and 45° right, a lateral head movement unit for 45° cuts left and longitudinal cuts, a rapid blade change system, support crank which allows cutting with ease when cutting big pieces (crank forward) and small pieces (crank back). The machine also has a manual vice with rapid clamping, metric length stop and a cooled tank with immersion pump thus reducing overall dimensions.

    SUPER BROWN 2000 SA mitre circular saw

    Super Brown 2000 SA mitre circular saw

    The SUPER BROWN 2000 SA mitre circular saw is a ideal machine for cutting short batches of material in long lengths where a mitre is required on each end. MACHINE COMPLETE WITH: Safety switch for blade drive on lever hand grip. Complete protection guard with rapid blade change system. Emergency push button with key on […]

    SUPER BROWN 351 AP automatic mitre circular saw

    Pedrazzoli Super Brown 351ap automatic circular saw
    MODEL: SB351AP Pedrazzoli automatic circular saw with mitre capability suitable for use with a 350mm diameter HSS saw blade for ferrous and non-ferrous cutting. Variable blade speed drive The Pedrazzoli circular saws are fitted with a patented variable speed drive that allows variable adjustment of the blade speed to suit material requirements and blade diameter. [...]

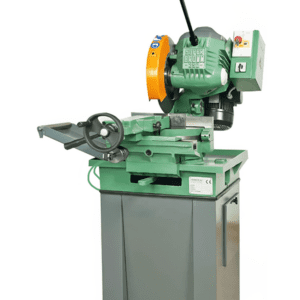

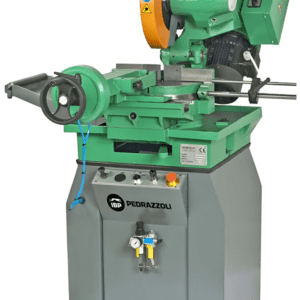

    SUPER BROWN 351/60 SA mitre circular saw

    Pedrazzoli Super Brown 351-60sa circular saw
    MODEL: SB351SA Pedrazzoli semi-automatic circular saw with left and right mitre capability (up to 60 degrees left) suitable for use with a 350mm diameter HSS saw blade for ferrous and non-ferrous cutting. Upto 60 degrees mitre cutting Variable blade speed drive The Pedrazzoli circular saws are fitted with a patented variable speed drive that allows [...]

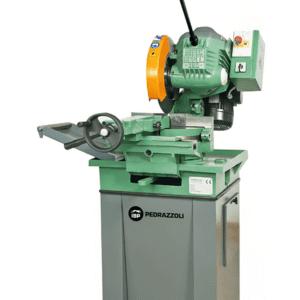

    SUPER BROWN 351MRM left-right manual circular saw machine

    pedrazzoli-super-brown-351-mrp-500x
    MODEL: SB351MRM Pedrazzoli manual pull down chop saw circular saw with left and right mitre capability (up to 60 degrees right) suitable for use with a 350mm diameter HSS saw blade for ferrous and non-ferrous cutting. Up to 60 degrees mitre capability Variable blade speed drive The Pedrazzoli circular saws are fitted with a patented [...]

    SUPER BROWN 351MRP left-right manual circular saw machine

    Pedrazzoli Super Brown 351 mrp circular saw
    MODEL: SB351MRP Pedrazzoli manual pull down chop saw circular saw with pneumatic vices and left and right mitre capability (up to 60 degrees) suitable for use with a 350mm diameter HSS saw blade for ferrous and non-ferrous cutting. Up to 60 degrees mitre capability Variable blade speed drive The Pedrazzoli circular saws are fitted with [...]
