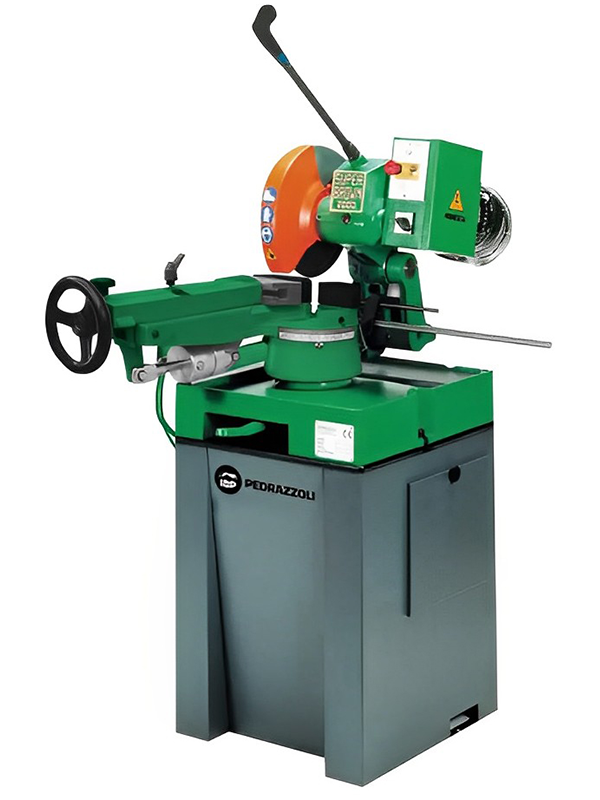

SUPER BROWN 2000 pull down mitre circular saw
High performance manual mitre circular saw with manual or pneumatic clamping, and compound angle mitre sawing up to 80mm.
Manual pull down circular saw
Compound angle mitre capability
Up to 80mm cutting capacity
275mm diameter blades
Description
MACHINE COMPLETE WITH:
- Manual quick clamp (for MRM versions).
- Pneumatic quick-release clamp (for MRP versions).
- Blade start safety switch located in the lever handle.
- Integral protection cover for quick blade change.
- Emergency button on the control panel with key.
- 2-speed switch.
- Tilting head on adjustable self-lubricating bushings.
- Mechanism for rotating the head block for angled cuts up to 45° left and right with locking lever.
- Lateral head movement unit for 45° cuts on the left vertical and longitudinal cuts.
- Adjustable support rod to cut with the same ease and performance large pieces (connecting rod forward) and small to medium pieces (connecting rod backward).
- Coolant tank with immersion pump for space saving.
- Bar stop with millimetre rod.
- Disc blade Ø 275.
- Set of maintenance keys.
- Instruction manual for use and maintenance.
ACCESSORIES ON REQUEST:
- Modular sheet metal pedestal of 34 Kg.
- Pedestal in welded sheet metal of 49 Kg.
- Rollers for loading and unloading the piece.
- Refrigerant liquid
Technical Data
Blade motor | 1.5 / 2.2 | kW | |
Blade speeds | 43 or 86 | RPM | |
Table height | 950 | mm | |
Blade diameter | 275 | mm | |
Weight | 180 | Kg | |
Unloaded noise level | 80 | dBA |
Cutting Specs
45 left | 0 deg | 45 right | ||
Round tubes | 80 | 80 | 80 | mm |
Square sections | 65 | 80 | 80 | mm |
Rectangular sections | 70 x 65 | 100 x 70 | 75 x 70 | mm |
