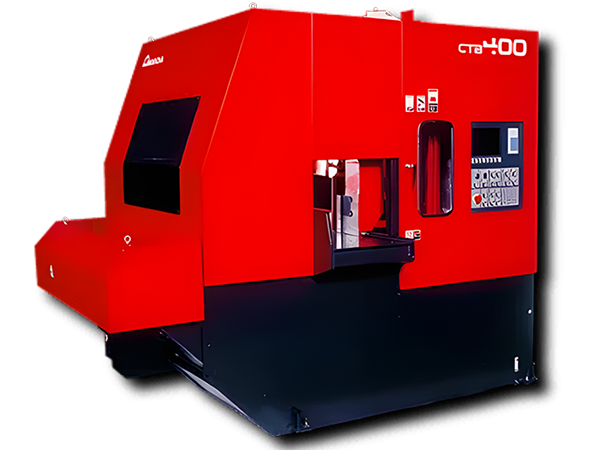

Amada CTB400 automatic bandsaw
The Amada CTB400CNC automatic bandsaw is designed for cutting difficult to saw materials fully automatically and with the minimum operator setup time.
- Windows based CNC Control
- A high powered 7.5 kw motor
- Automatic Adjust Wire Brushes
- Automatic powered chip conveyor
- Maximum Cutting Capacity: 430x430mm
Bandsaw Machine CTB400CNC
The Amada CTB400CNC automatic bandsaw is designed for cutting difficult to saw materials fully automatically and with the minimum operator setup time. The cutting of material is done by a vertical saw frame which doesn’t reply on control of a gravity fed head, reducing the need to compensate for its weight giving greater control when cutting difficult to cut materials. This feature also allows faster cutting times with longer blade life. Coupled with Amada band saw blades, this machine is in a class of it’s own.
Windows based CNC Control
The functions and set up of the bandsaw are controlled by a Windows based touch screen. Simple to use it enables the operator to choose the size, type, tolerance and number of cuts required of most materials, then JUST PRESS GO. The machine will cut the material and give optimum performance.
The screen gives an estimated finish time for each job. A history of cutting and fault finding information is also accessible.
Motor and Transmission
A high powered 7.5 kw motor coupled with a special high efficiency transmission maintains high cutting rates even when cutting the toughest of materials.
Maximum Bandsaw Blade Width
A 41mm wide blade 4715mm long 1.3mm thick enabling faster feeds and speeds achieving phenomenal cutting rates even on tough materials such as Inconel, Hastelloy and Monel.
Automatic Adjust Wire Brushes
Automatically adjusted double wire brush design assures keeping the chip area of the blade clean for maximum life of blade and brushes in all types of cutting.
Automatic powered chip conveyor
This is situated in the base of the machine and covers the whole area ensuring very efficient swarf removal.
Maximum Cutting Capacity
Round bar: 430mm
Rectangular bar: 430mm x 430mm
For a full specification, demonstration or quotation call now on 01274 870311
