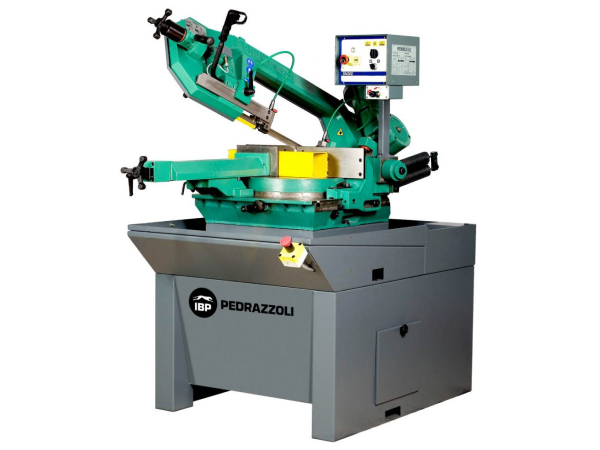

SN 300 NEWTON BANDSAW
Manual bandsaw with controlled gravity feed (hydraulic)
2 Speed Three-phase (V 400 – 50 Hz, other voltages upon request)
Description
NEWTON DEVICE DESCRIPTION
- M – Manual mode: Put the selector in M position (manual). Turn the apposite handwheel so that it matches the index with 0 (zero) indicated on the scale. In this way we tighten the saw balancing contrast spring. Lock the piece by closing the vice. Press the start button and go on with the normal manual cutting cycle: remember that the bow descent is activated only by pressing the start button. It is possible to adjust bow descent pression acting on flow regulator.
- D – Dynamic mode: Put the selector in D position (dynamic). Turn the apposite handwheel so that it matches the index with 40 (forty) indicated on the scale. In this way we loose the sawbalancing contrast spring. Adjust the limit switch at the end of the cut. Lock the piece by closing the vice, position the blade above the piece to be cut and press the start button. Now it is possible to adjust bow descent pression by means of the flow regulator: hence the bow go down by gravity autonomously. At the end of the cut the limit switch will stop the blade motion. Raise the bow above the piece and replace the bar to be cut.
ACCESSORIES UPON REQUEST:
- Micromist lubrication
- MRP pneumatic quick clamp kit
- Laser cutting indicator
- Mechanical speed variator
- Loading & unloading conveyors
DIMENSIONS > 1400 x 1500 x 1800 mm
WEIGHT > 430 kg
Cutting capacity
> Round tubes
45° sx: 160 mm
0: 220 mm
45° dx: 200 mm
60°: 130 mm
> Square profiles
45° sx: 120 mm
0: 190 mm
45° dx: 150 mm
60°: 110 mm
> Rectangular profiles
45° sx: 160 x 130 mm
0: 330 x 150 mm
45° dx: 160 x 130 mm
60°: 110 x 110 mm
